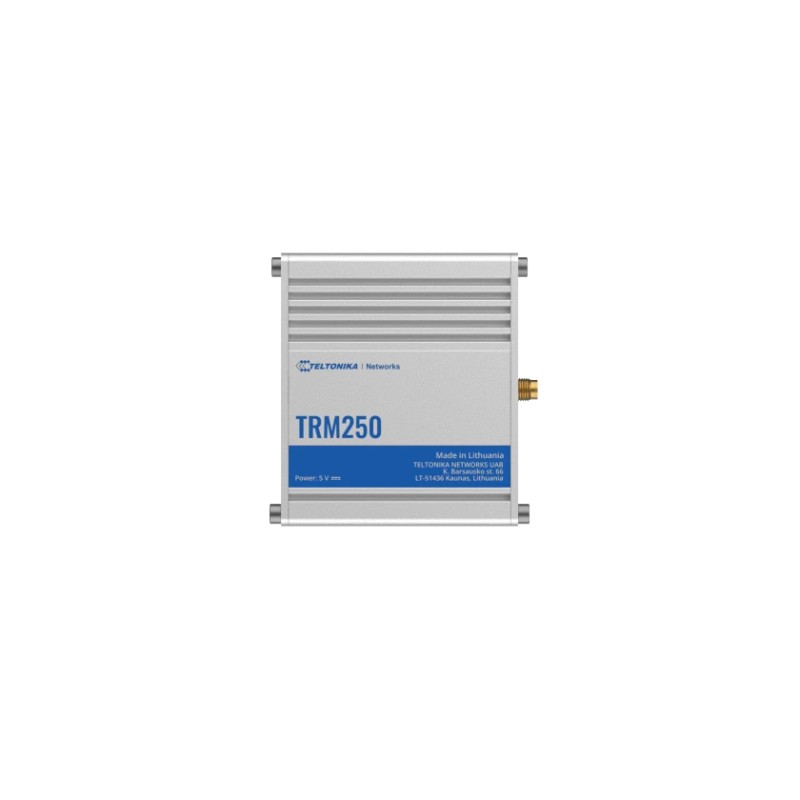

TRM250 Industrial/IoT LTE Router

Mobile

• LTE (Cat M1)
• NB-IoT
• EGPRS

Power

• microUSB
• Input voltage range
• 5V - powered via microUSB
• Power consumption
• 3.6 W Max

Status LEDs:

• 1 x Power LED,
• 1 x Network LED,
• 1 x LTE LED

SIM:

•  1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

Antennas:

• 1 x SMA for LTE

Dimensions (W x H x D):

• 74.5 x 25 x 64.5 mm

Physical Specification:

• Aluminium housing
• Weight 130 g
• Mounting options
• DIN rail
• Flat surface

Operating temperature:

• -40 °C to 75 °C

Operating humidity:

• 10% to 90% non-condensing

Ingress Protection Rating:

• IP30

TRM SOFTWARE:

• Management Software
• Windows Connection Manager (NDIS driver)
• USB Driver
• Windows 7/8/8.1/10, Windows CE 5.0/6.0, Linux 2.6/3.x/4.1~4.14, Android 4.x/5.x/6.x/7.x/8.x
• RIL Driver
• Android 4.x/5.x/6.x/7.x/8.x
• NDIS Driver
• Windows 7/8/8.1/10
• Gobinet Driver Linux 2.6/3.x/4.1~4.14
• Linux Driver 3.x (3.4 and later)/4.1~4.14
